DC Power Booster



PDF Logo Specification Sheet BOOSTER.PDF - 215 (kB)

The Power Booster will overcome the voltage drop on long cables. Ideal for cranes or other remote power feed situations.

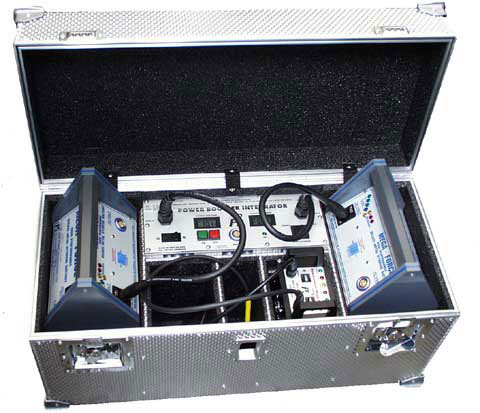

Complete Booster  Module

Special Features :


Power Boost:

Step up your 24-30V batteries to 30V nominal. True 30V delivered to the load utilising Remote Sensing, with up to 20% automatic voltage trim for cable loss. The boost can be as high as 36V!

Integrator:

Combine any two suitable batteries into one output. The batteries are hot-swappable, which means the unit does not need to be powered off to change or add a battery.

High efficiency output of 400W continuous, up to 600W peak!

Intuitive User Controls and handy Output Voltage and Current meters.

Ultra-Compact employing the latest high capacity rechargeable NiMH cells, and DC-DC Booster design.

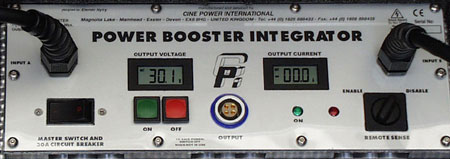

Booster Module

The Booster Module is fitted permanently into the case. There are two spaces for the batteries, a further two for the chargers and a single space to hold the cables. Also note that the case features a small cable feed-through port on the front. This allows the entire unit to be used in light rain conditions with the case closed.

Mega-Force Battery
Mega-Force Battery

Mega-Force Batteries :


Two 17 Ah 30V NiMH Batteries will keep the shoot running all day!

As with all Cine Power Batteries, these batteries are fitted with over-discharge protection to prolong the life of the cells and to protect the battery. When the battery is nearly fully discharged, a yellow LED on the battery will start to flash. When the battery is fully discharged, a red LED will illuminate, and the battery outputs are disconnected.

Each battery is also fitted with capacity level indicator. This will indicate the approximate capacity remaining in the batteries. Very handy to avoid an unpleasant discovery of flat batteries!

Long cable runs need a Booster!

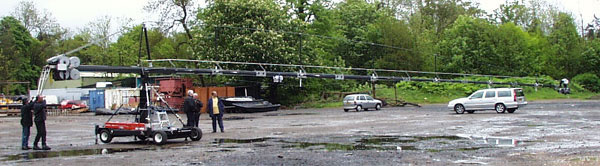

80 feet! of crane at Pinewood Studios, England.

A High-Speed Camera will need sufficient power to work properly. Our Power Booster will do the job perfectly!

The Booster Module has been designed and constructed to the highest standards to ensure reliable, trouble-free operation. The unit is entirely customisable, please do not hesitate to contact us with your requirements.
