125-200W AC Ballast

Dual output 125W - 200W Flickerless AC Ballast, designed to power high intensity daylight discharge lamps.



Suitable for a wide range of lampheads.


Key Features :

  • DOUBLE OUTPUT - 125W or 200W! (Only one at a time.)

  • LAMP COLOUR TEMPERATURE INDICATION

  • ADVANCED DESIGN FOR MAXIMISED LAMP LIFE

  • TRUE POWER REGULATION FOR CONSTANT LIGHT OUTPUT

  • FLICKERFREE CRYSTAL CONTROLED OUTPUT

  • CONSTANT COLOUR TEMPERATURE

  • INSTANT HOT-RESTRIKE CAPABILITY

  • ULTRA QUIET OPERATION

  • DIMMABLE FROM 50% - 100% WITH CONSTANT COLOUR TEMPERATURE

  • SUPPORTS 2 OR 3 WIRE IGNITORS

  • SUPPORTS LAMPHEADS WITH OR WITHOUT ON/OFF SWITCHES

  • RUGGED, COMPACT AND LIGHTWEIGHT CONSTRUCTION

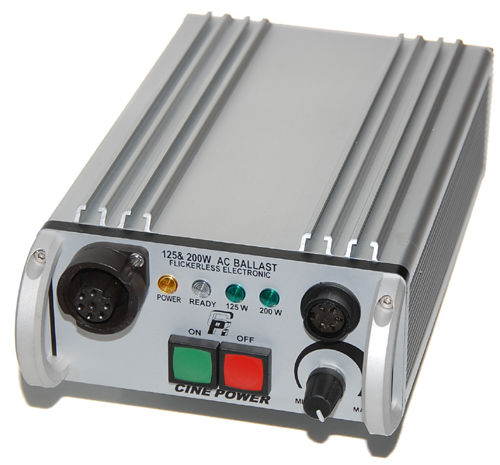

The front panel is clearly presented with indicators for AC Power, Lamp Type, and Lamp Colour Temperature. Ballast output power is dimmable by up to 50% in each power range. Two soft touch switches offer a convenient lamp On/Off control, ideal for remotely mounted lampheads.

Power is supplied to the Ballast via a universally used IEC 3 pole connector, mounted on the rear of the unit. For additional safety both Live and Neutral inputs are fused.

The ballast can be used free standing, or an optional Click-Lock docking accessory can be fitted to permit easy fitting to a lamp stand if required.

Primary cooling is achieved with an ultra quiet fan utilising true proportional control using thermal feedback to ensure long fan life and minimum noise. Secondary cooling is achieved via the Ballast housing, extruded in aluminium, which can be anodised in a range of colours.

For your safety the unit has been designed, constructed, and tested to stringent European CE and American UL Safety and EMC Standards. Custom versions of this Ballast are available on request.

Please do not hesitate to contact us with your requirements, or to discuss your lighting equipment needs.
