HD Camera Batteries
HD Camera Batteries

HD Camera batteries specially tailored for the HD environment with advanced output monitoring. They offer high power, long life, reliability, performance and flexibility with compact and rugged design features to withstand the challenging conditions often encountered during production.





Red line

VITAL STATISTICS

Sizes:

Height:

Length:

Depth:

Weight:

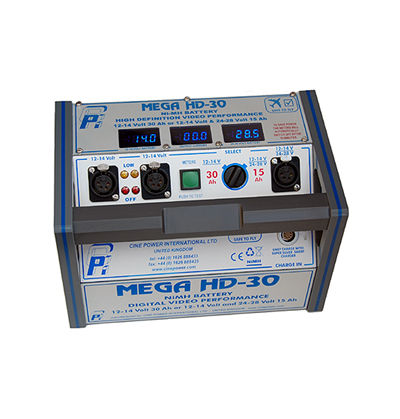

HD-30

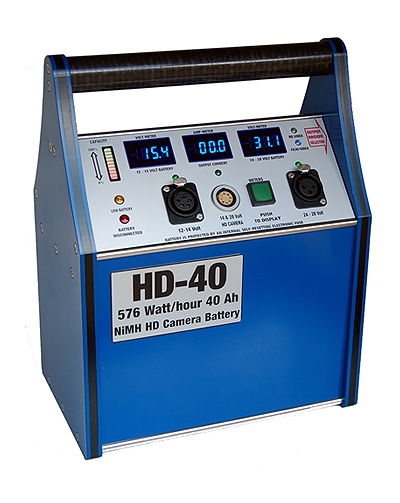

HD-40

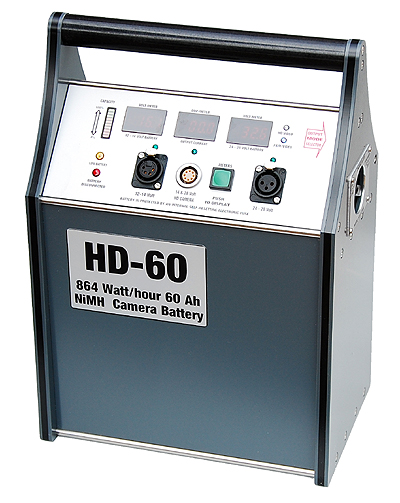

HD-60

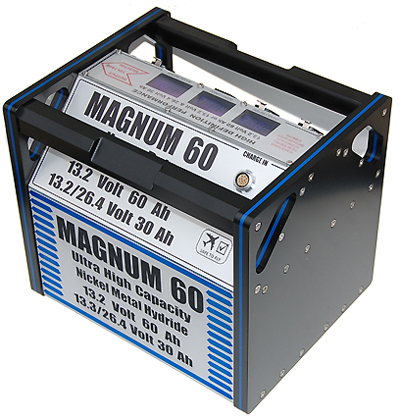

MAGNUM-60

152 mm / 6"

287 mm / 11.2"

365 mm / 14.3"

214 mm / 8.4"

240 mm / 9.5"

226 mm / 8.9"

260 mm / 10.3"

254mm / 10"

152mm / 6"

143mm / 5.7"

173mm / 6.9"

205mm / 8"

8.5 kg / 18 lbs

12.4 kg / 27.3 lbs

17.5Kg / 38.5 lbs

18Kg / 39.6 lbs


Red line

ELECTRICAL CHARACTERISTICS

Output

Type

14V HD
Single Output

14V 28V FILM
Double Output

14V 24V 28V HD
Triple Output

HD-30

HD-40

HD-60

MAGNUM-60

NiMH

NiMH

NiMH

NiMH

30Ah

40Ah

60Ah

60Ah

15Ah

20Ah

30Ah

30Ah

Not available.

40Ah

60Ah

60Ah


Red line

PERFORMANCE

Low voltage run time (10V - 17V):


100W


150W


300W

HD-30

HD-40

HD-60

MAGNUM-60

4 hours

5.5 hours

8.5 hours

8.5 hours

2.5 hours

3.8 hours

5.5 hours

5.5 hours

1.3 hours

2.0 hours

2.75 hours

2.75 hours


High voltage run time (20V - 30V):


50W


100W


250W

HD-30

HD-40

HD-60

MAGNUM-60

8.0 hours

11.5 hours

17 hours

17 hours

4.0 hours

5.7 hours

8.5 hours

8.5 hours

1.6 hours

2.3 hours

3.5 hours

3.5 hours


Red line

Indication


All batteries are fitted with indicator LED's, multiple output digital voltage meters and total battery load current digital meter.

Outputs


Output voltages are selected with a switch and/or output cable. Live outputs are indicated by LED above the socket. Battery output can be disabled by switch ( excluding HD-30 ).

Low Voltage:

XLR: 14V

High Voltage:

LEMO: 14V + 24V is available through the LEMO socket simultaneously.
(24V max load 5 Amps. Not available on HD-30)

XLR: 14 and/or 28V ( depending on XLR socket fitted )

Other types of sockets can be fitted.

Protection


All batteries are fitted with internal self-resetting electronic fuses, thermal protection and over-discharge protection. The over-discharge protection device will cut all power to the output(s) once the battery has been discharged to the minimum safe level. A Yellow low battery warning LED will flash to give early warning that the cut-off point is close. A Red LED indicates that the battery is fully discharged, at which stage the load should be disconnected. The over-discharge protection function is totally automatic in operation, and will reset itself during subsequent recharge.

Construction


Fully sealed, suitable for air transport without restrictions. Battery housing machined from a high impact composite for rugged durability. Ultra low-loss design provides maximum power output, and gold plated low loss XLR and Fischer connectors fitted as standard.

Recharging


Mega HD / HD-30 requires Cine Power Super Silver Charger.

HD-40 / HD-60 / Magnum-60 requires Cine Power Super Silver Mega Charger.

Recharge time is proportional to the depth of discharge and ambient temperature.
Typically no more than 5 hours from completely discharged.

Colour and Finish


Choice of colour:
  • Main colour - Grey or Black
  • Trim colour - Red, Blue, Yellow, White, Grey, Black
  • Artwork - Anodised to match trim.
Your name or Company logo may be added if artwork is supplied at time of ordering.

All of our products can be tailored to suit your needs. Please contact us with your requirements.
